Excel PIVOTBY Function: Cross-Tab Summaries With One Formula

The Excel PIVOTBY function builds a cross-tab summary with one formula: one field down the rows, another across the columns, and the values summarised where they meet.

=PIVOTBY(row_fields, col_fields, values, function, [field_headers], [row_total_depth], [row_sort_order], [col_total_depth], [col_sort_order], [filter_array])

Purpose: Summarise by rows and columns with a formula
Returns: A cross-tab table that spills
Available in: Excel 365, Excel for the web

`row_fields`	The field to show down the rows, such as Region.
`col_fields`	The field to show across the columns, such as Product.
`values`	The values to summarise.
`function`	SUM, AVERAGE, COUNT, MAX, MIN and others.
`row_total_depth` optional	0 hides row totals, 1 shows a grand total (default).
`col_total_depth` optional	0 hides column totals, 1 shows a grand total (default).

Table of Contents

Basic example

To see sales for every region and product combination, put Region down the rows and Product across the columns:

=PIVOTBY(B3:B10,C3:C10,D3:D10,SUM)

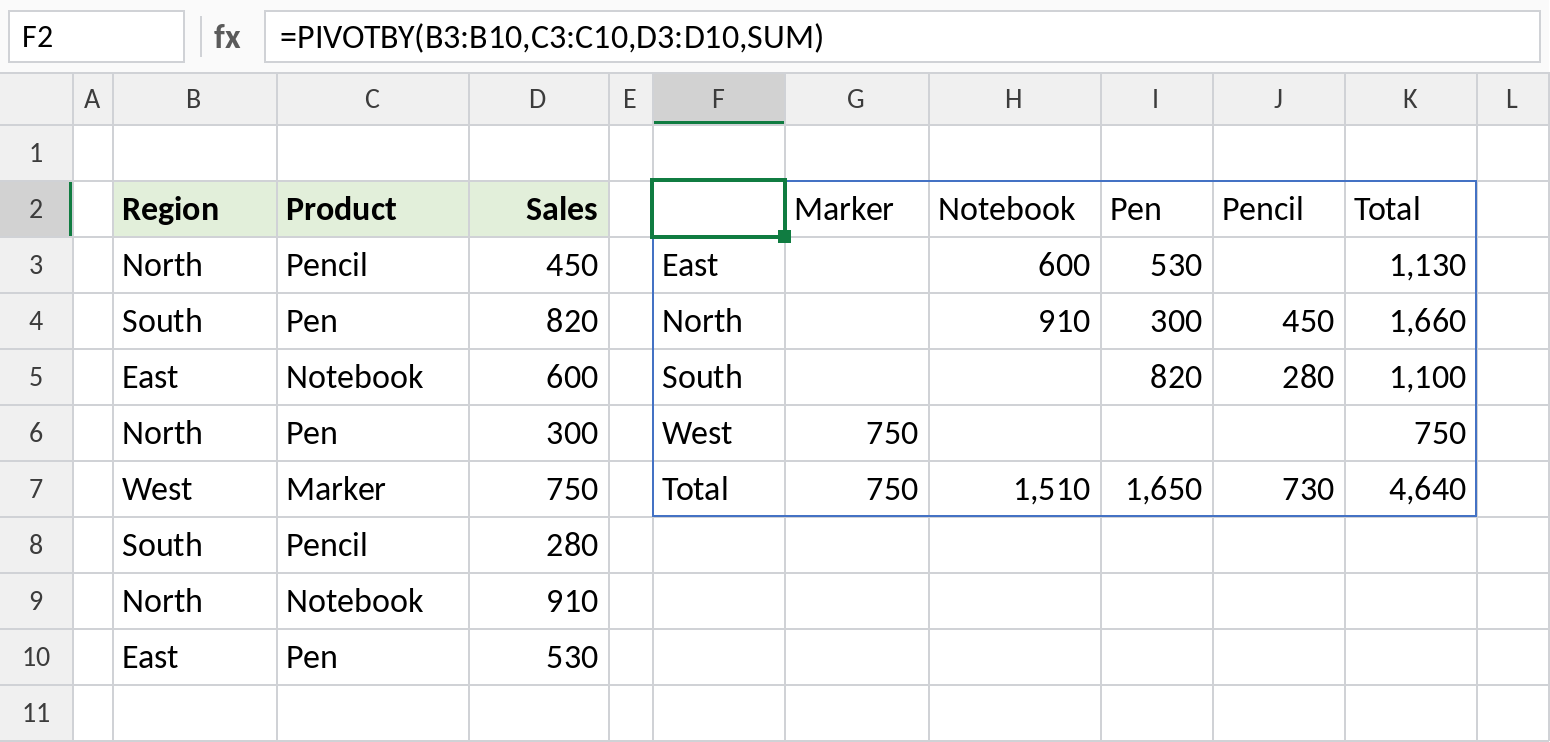

Excel PIVOTBY cross-tab of sales by region and product with totals

North sold 910 of Notebook and 1,660 in total. Empty cells mean that combination had no sales. Totals are added on the right and at the bottom: 4,640 overall.

Count instead of sum

Change the function to COUNT to see how many orders each combination had:

=PIVOTBY(B3:B10,C3:C10,D3:D10,COUNT)

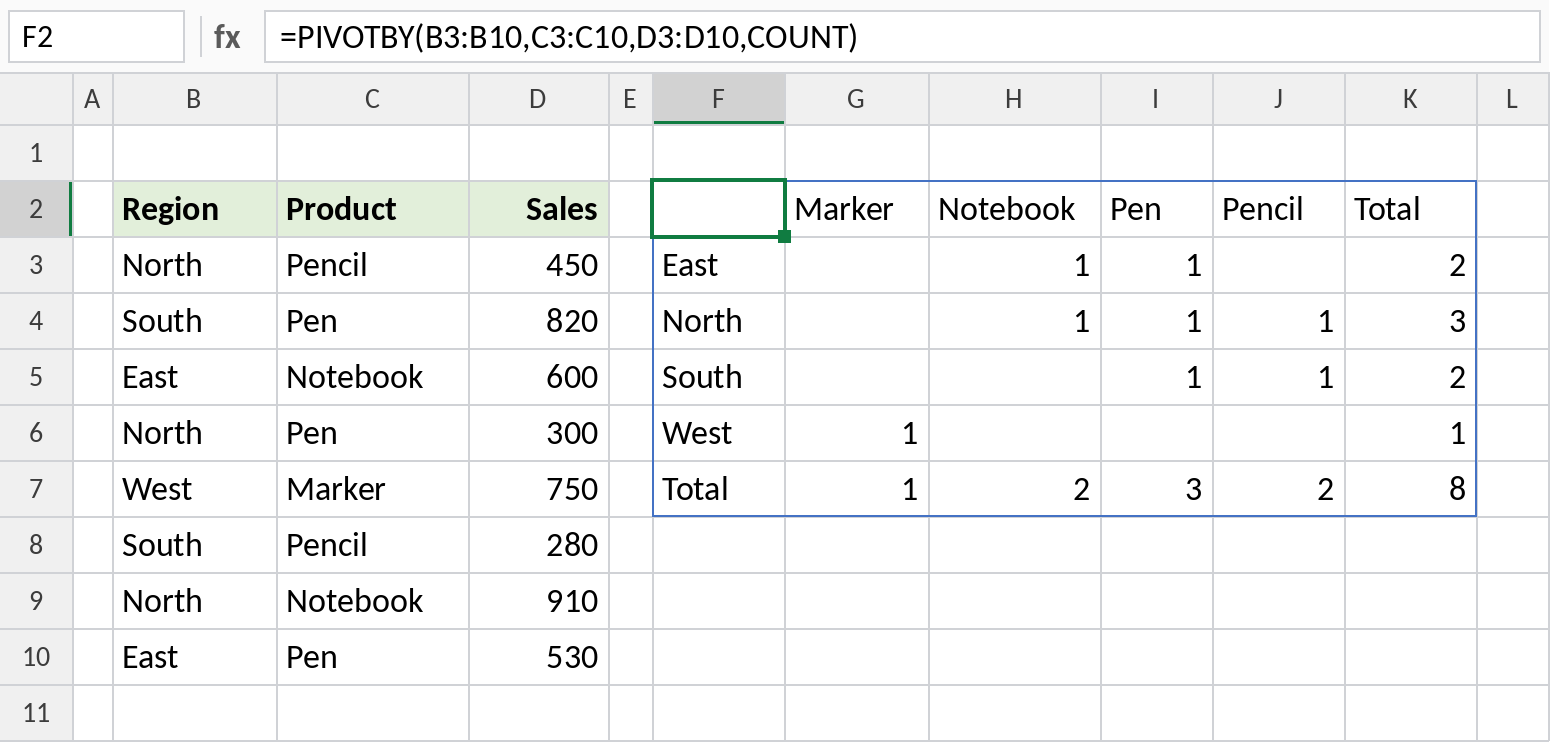

Excel PIVOTBY counting orders by region and product

North has 3 orders, one of each product it sells. Overall there are 8 orders.

Remove the totals

Set row_total_depth and col_total_depth to 0 for a plain grid, ready to chart:

=PIVOTBY(B3:B10,C3:C10,D3:D10,SUM,,0,,0)

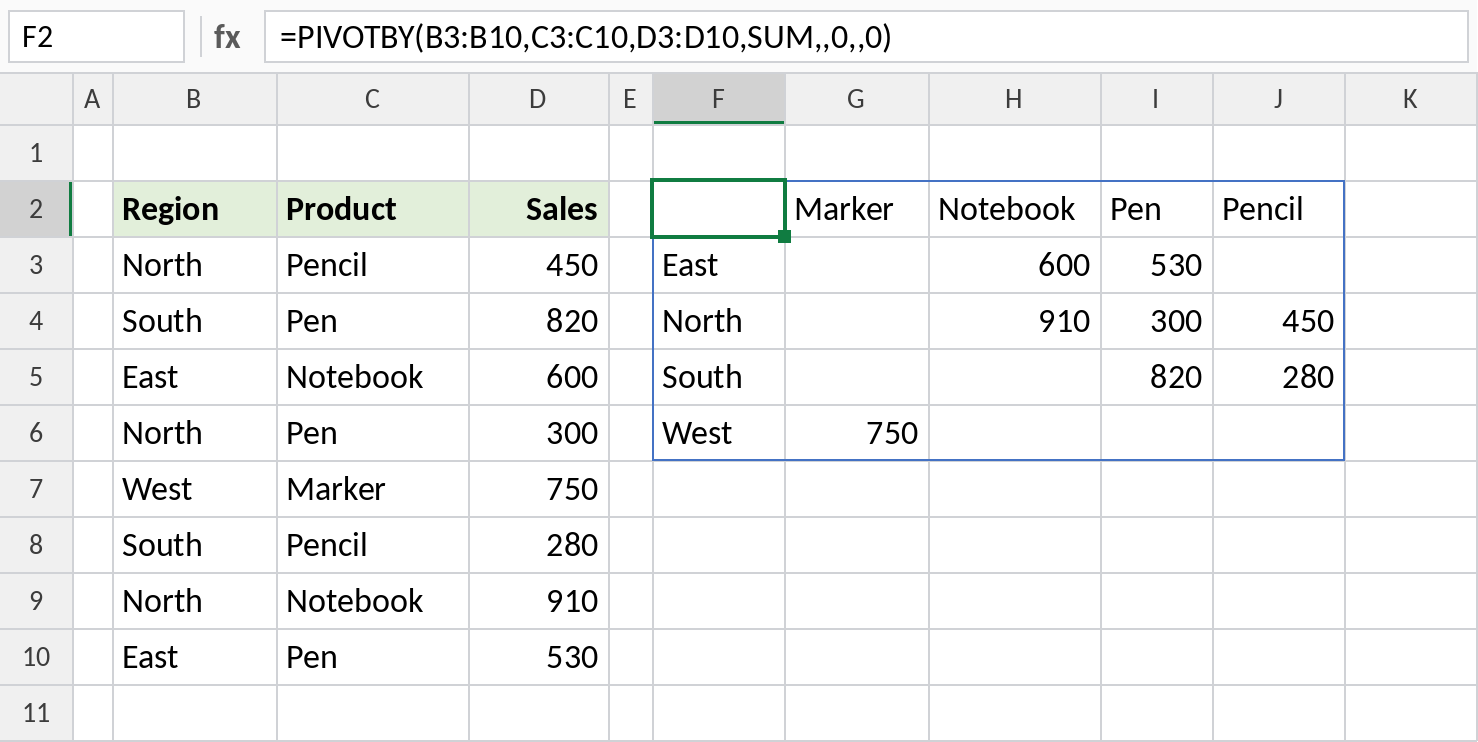

Excel PIVOTBY grid of sales by region and product without totals

The Total row and column are gone, leaving just the 4 × 4 grid.

PIVOTBY vs GROUPBY

	GROUPBY	PIVOTBY
Groups by	Rows only	Rows and columns
Result shape	A list with totals	A cross-tab grid
Typical use	Totals by region	Region × product, month × category

For a single list of totals, GROUPBY is simpler.

Notes

Write the function without brackets: SUM, not SUM().
Rows and columns are sorted A to Z unless you set the sort arguments.
Empty cells mean there was no data for that combination.
PIVOTBY is only in Excel 365 and Excel for the web.

Common errors

Problem	Cause	Fix
`#NAME?`	Not Excel 365, or the function typed with brackets	Use Excel 365, and type `SUM` without brackets
`#VALUE!`	The ranges are different heights	Make them cover the same rows
`#SPILL!`	Cells in the spill range aren’t empty	Clear the space to the right and below

Practice file

All three examples with working formulas (Excel 365).

Download .xlsx
